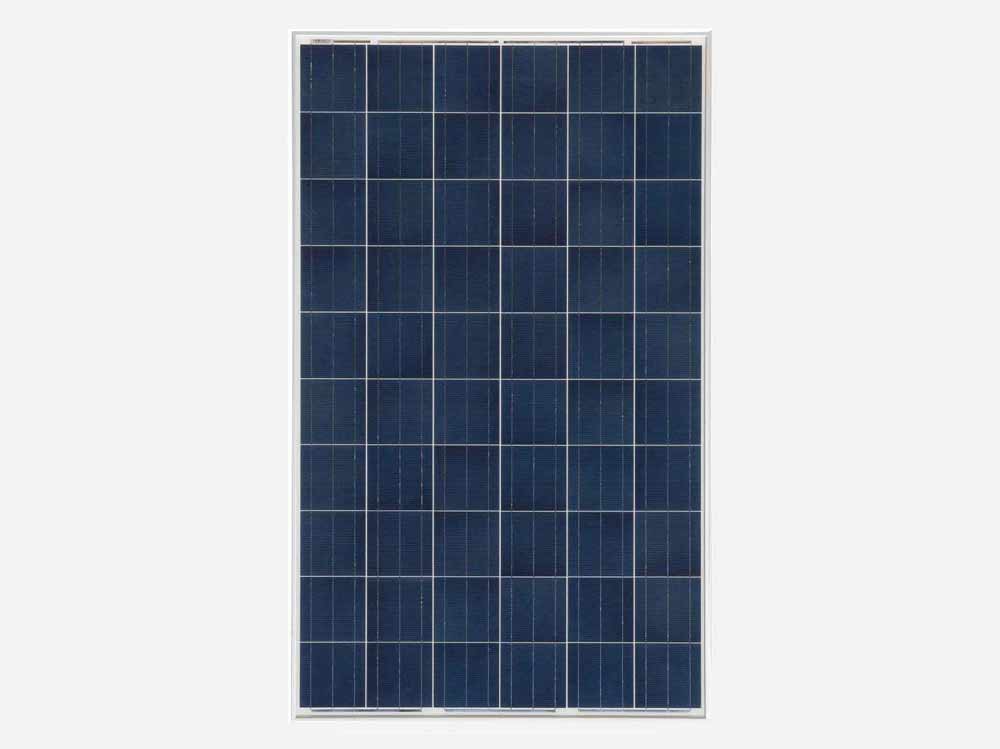

    270W30V Poly Module
    Product category: Poly 30V Series


    Product Design: Standard Module
    Solar Cell: 60 Pcs
    Minimum quantity: 1 Pcs
    Time of delivery: 3-10 days
    Packing: wooden cases or cartons
    Others: provide customized services according to user needs.


    Detail


    技術參數  ELectrical Data


       標稱功率(W)Power
        270
       工作電壓(V)Vmp
        32.01
       工作電流(A)Imp
        8.48
       開路電壓(V)Voc
        37.66
       短路電流(A)Isc
        8.98
       電池效率(%)CE
        18.6
       組件效率(%)ME
        >16.62
       公差(%)Tolearnce
        ±3%
       NOCT
        47°C +/-2°C

    溫度系數   Temperature Coefficients


       短路電流系數          Isc(%)℃
        +0.04
       開路電壓系數          Voc(%)℃
        -0.38
       標稱功率系數          Pm(%)℃
        -0.47
       工作電流系數          Im(%)℃
        +0.04
       工作電壓系數          Vm(%)℃
        -0.38

    組成及機械參數   Components & Mechanical Data


       電池參數         Solar Cell
       156*156  Poly
       電池數量         Number of Cell(pcs)
        6*10

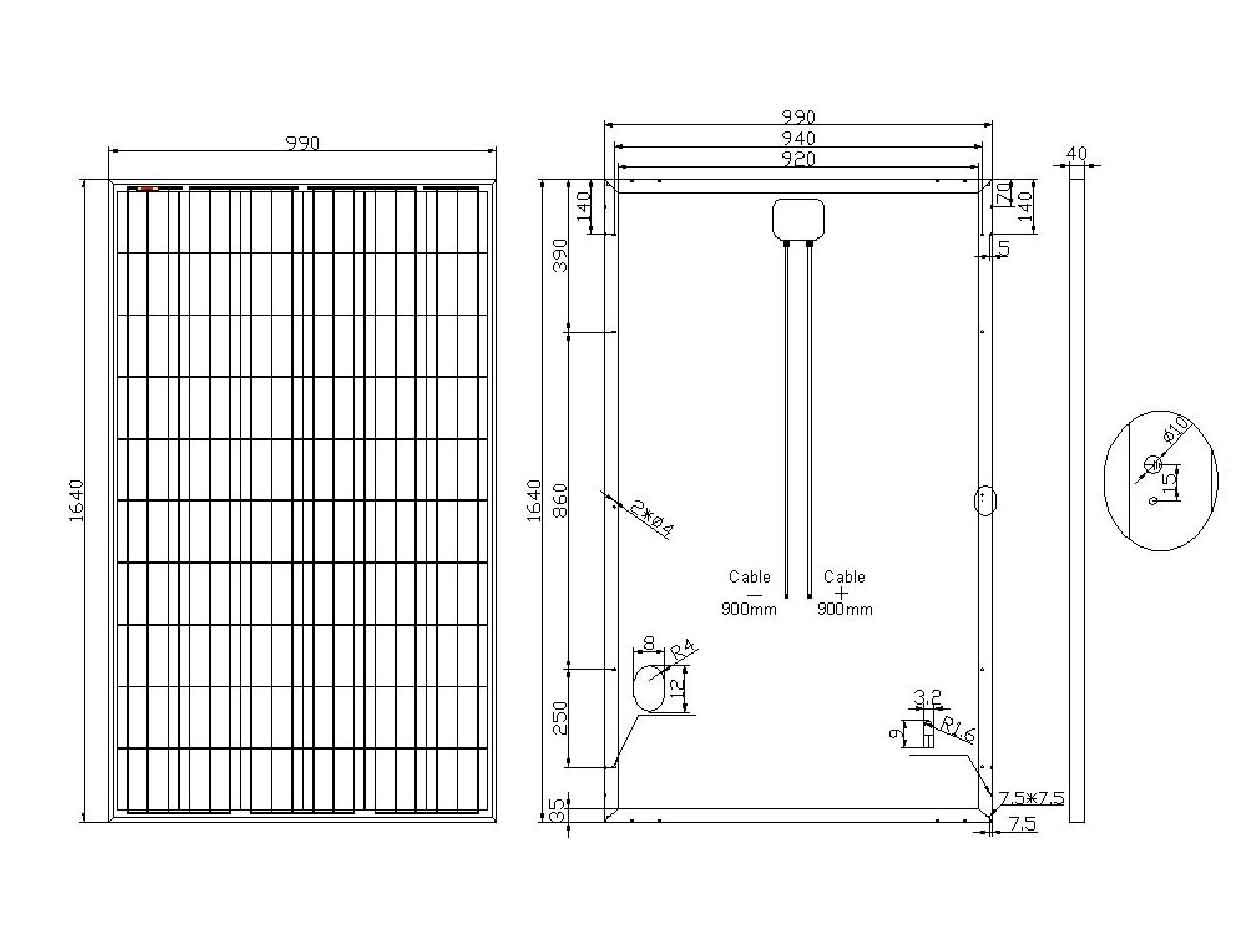

       組件尺寸         Size of Module(mm)
       1640*990
       玻璃厚度         Front Glass Thikness(mm)
        3.2
       表面載荷能力   Surface Maximum Load Capacity
        2400-5400Pa
       抗冰雹能力      Allowable Hail Load
        23m/s ,7.53g
       組件重量         Weight Per Piece(KG)
        18.96
       接線盒類型      Junction Box Type
        Pass the TUV or CE Certificate
       二極管電流       Bypass Diode Rating(A)
        12 or None
       電纜及連接器類型   Cable & Connector Type
        Pass the TUV or CE  Certificate

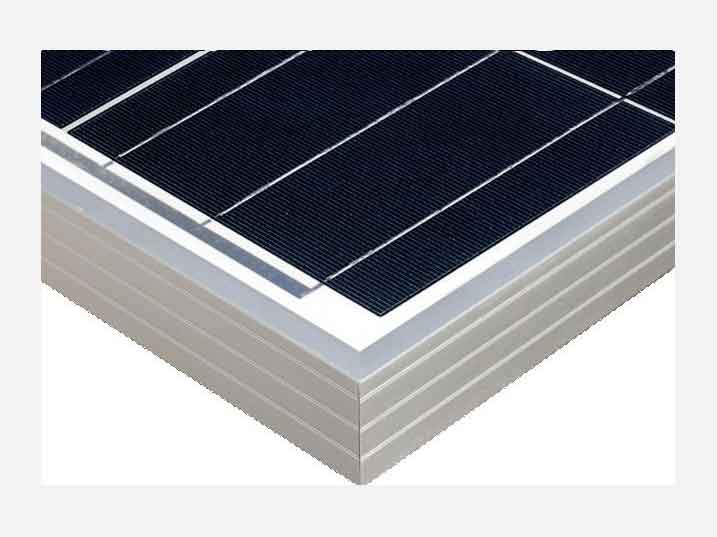

       組件邊框          Frame(Material Corners,etc.)
        30# / 35#
       背板類型          Backing (Brand Type)
        TPT , PET or KPF
       溫度范圍          Temperature Range
        -40°C  to +85°C
       測試條件          Standard Test Conditions
        AM1.5 1000W/㎡ 25°C


    Dear friend,the above parameters only for reference, if you want to know more detail about solar module, please call 18901681653 (wechat)  or send email to 9513131@qq.com, thank you very much.

    We produce 10W/20W/30W/50W/60W/70W/80W/90W/100W/120W/150W/180W/200W .etc small solar module.
    We provide product according to customer requirement.
